P20 Multi Cavity Injection Molding Hasco Harden Steel OEM Aluminum Die Casting

Place of Origin China
Brand Name Gennki
Certification ISO9001 / TS 16949
Minimum Order Quantity 1 mold
Price discuss base on certain RFQ
Packaging Details plastic film wrapped, and sustained in the wooden crate
Delivery Time 42 days
Payment Terms T/T
Supply Ability 40 sets/Monthly
Product Details
Casting Material Aluminum Mold Steel Dievar
Cavity No 1+1 Standard DME And Hasco
Surface Standard Polishing Mold Life 100K
Design Software Solidworks, Catia, UG Design Format IGES, Prt. Step
High Light

P20 Multi Cavity Injection Molding


harden steel Multi Cavity Injection Molding


Hasco oem aluminum die casting

Leave a Message
Product Description

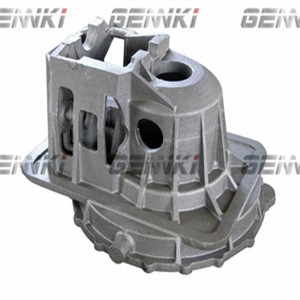

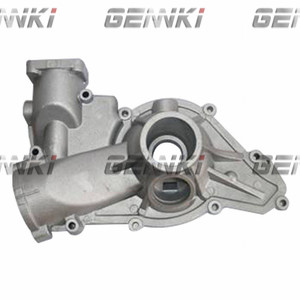

2 cavities die casting molds with harden steel for automotive industry

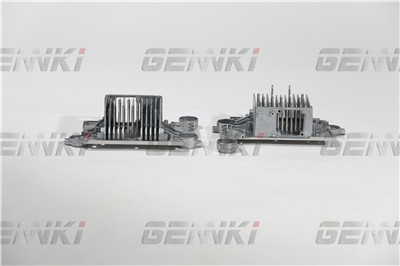

Heat sink dies casting is one of our advantages in the Automotive industry for customers requiring pilot quantities or production pieces. Normally it is built by the family mold of being constructed with a family including both left-hand and right-hand side. The cavity/core steel selection is subject to the choice of desired quantities, from the range of P20, H-13 to Dievar. These kinds of mold can be extensively applied in the vehicle industry.

At Gennki group, one of the subsidiaries, providing the customers the turn-key solution from the concept to the real product, is committed to manufacturing the products for end-users efficiently. That signifies working closely with each of our customers, from concept, part design, design analysis prototype, and production fulfillment of injection molds/molding, aluminum die casting, stamping, and assembly.
We built our infrastructure to help you make better parts faster. With our main plants in China east, serving customers from the globe, you always have the capacity, technology, and expertise you need to get your job done right.



Brand Name Gennki Group
Description Aluminum Injection Mould
Mold Material Steel Dievar
Production Material A380 and ADC 12
Gate system Sprue gate
Ejection Pin
Movement NO
A.B plate 1.1730/P20.etc
Tool Life 100K shots (Prototype tooling 2000pcs)
Mold Base Copy DME or Hasco steel
Cavity&Core Dievar
Surface Finish Polish/Texture/Heat Treatment.etc
Cavities Single/Multiple/Family mold
Place of Origin China EAST



Die-casting is a casting method in which molten metal such as aluminum alloy, zinc alloy, magnesium alloy, and copper alloy is poured into precision molds under high pressure. This method is used for various products because of its ability to provide excellent dimensional accuracy, beautiful and smooth cast surfaces, and high productivity. It is said that automotive components account for a majority of all the die-cast products manufactured. In particular, aluminum alloy die-casting is frequently used in automotive components because it features higher electrical/thermal conductivity, corrosion resistance, and workability as well as a lighter weight and higher strength compared to zinc alloy die-casting, thereby achieving products with low cost and high recycling efficiency. Automotive applications include cylinder blocks, transmission cases, and rocker covers. Conventional die-cast products often contain gas, which makes heat treatment and welding difficult, so it is said that it is difficult to apply such products to the automotive undercarriage and body components. In recent years, however, special die-casting methods, such as laminar flow die-casting and high-vacuum die-casting, have led to the application of die-casting in more difficult products. Along with this trend, requirements for the functionality and quality of casting have also increased.


P20 Multi Cavity Injection Molding Hasco  Harden Steel OEM Aluminum Die Casting 0P20 Multi Cavity Injection Molding Hasco  Harden Steel OEM Aluminum Die Casting 1P20 Multi Cavity Injection Molding Hasco  Harden Steel OEM Aluminum Die Casting 2


Frequently Asked Question:

Q1. What is required of RFQ?

1) 3D formats with .stp.(preferred) igs,.prt.

2) 2D drawing for tolerance/material/surface finish/test requirement/regulations

3) Quantity (by order, month and Year)

Q2. How do you ensure product quality?

Gennki applies assessment, planning, monitors every single process. Some bullet points:

1) Apply APQP Product development analysis

2) Lay emphasis on prevention and planning

3) Quality Criteria (ISO and TS 16949)
Q3. How do you ensure on-time delivery?

1) Detailed planning, details per hour/person/machine number/stakeholder…

2) Main material is managed efficiently

3) Daily progress meetings, a recovery plan will be reviewed by the management team once any key chain is a delayed.

4) If a delay happens on delivery in the course, extras hours will help to turn it on schedule

Q4. How can you if we don’t have the CAD data?

Gennki is able to generate the CAD for your review and approval in terms of your 2D sketch, or certain samples.

Q5. Can we test the plastic injection mold?

You are always welcome to company with us to try the molds in place in person. The testing video can be supplied for your checking in your absence.

Q6. How long does an injection mold last?

Generally, a plastic injection mold could complete anywhere between 100,00 to 1 million (or sometimes somewhat more than a million) cycles in its lifetime, so it's subject to customer’s expectancy.

Q7. How about your guarantee or aftersales?

The worn-easily spare parts will be freely provided during the warranty period. Gennki’s strategic associated American mold shop will assist you to handle the modification change if needed after the delivery.

Q8. How Can I visit your company from abroad?

Easy to find, you may take an international flight either land at PVG Airport or Hongqiao Airport from your workplace. The nearby high-speed train station to Hongqiao Airport will facilitate your trip to elsewhere in China.
