P20 H13 1.1730 Plate Automotive Injection Mold Multi Cavity Injection Mold

Multi-cavity injection molds with harden steel for the Automotive industry

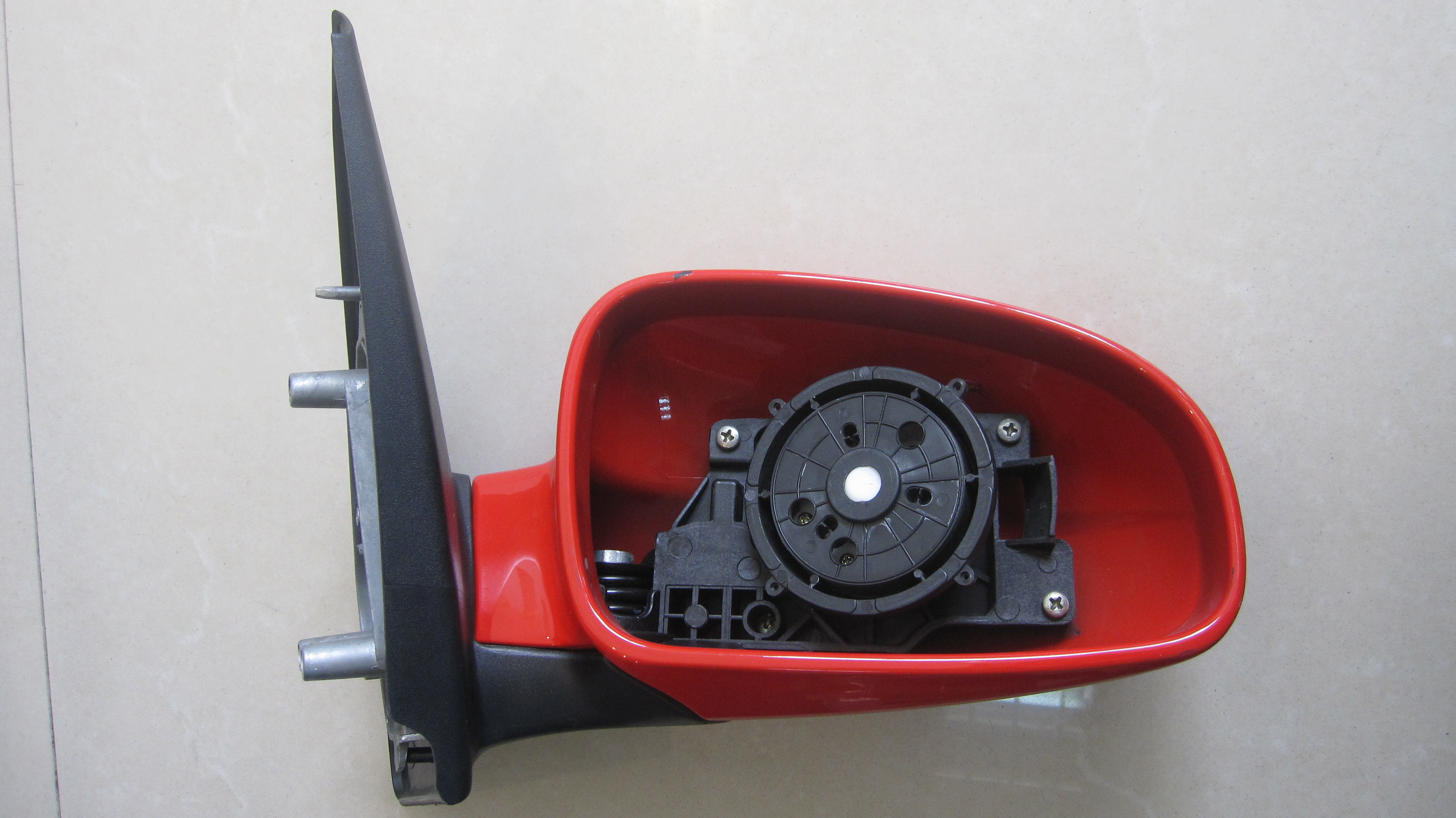

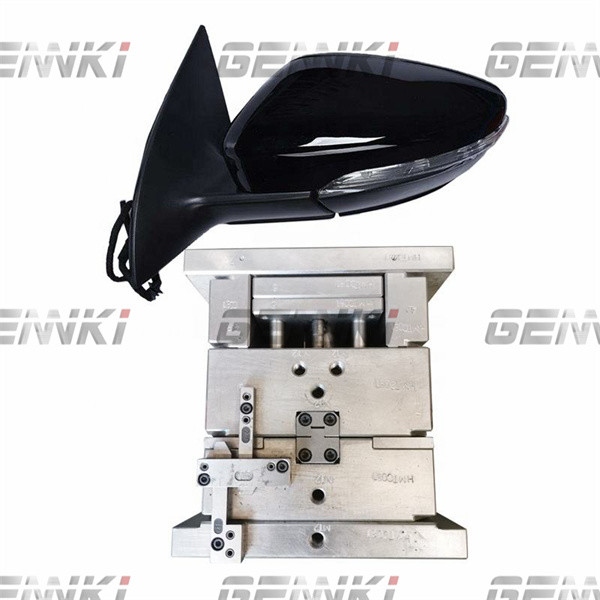

The car side mirror is one of our professions in the Automotive industry.  Normally it is built by the family mold of being configured with a 1+1 cavity. The cavity/core steel selection is subject to the choice of injection material that can be against with. These kinds of mold can be extensively applied in the vehicle industry.

At Gennki, providing the customers the turn-key solution from the concept to the real product, are committed to manufacturing the products for end-users efficiently. That signifies working closely with each of our customers, from concept, part design, design analysis prototype, and production fulfillment of injection molds/molding, aluminum die casting, stamping, and assembly.
We built our infrastructure to help you make better parts faster. With our main plants in China east, serving customers from the globe, you always have the capacity, technology, and expertise you need to get your job done right.

Tooling details for injection molding projects

Prototype tooling, Molds with mild steel for cavity and core with a short life of 5,000-10,000 shots, Typically machined in 2 weeks

Production tooling, Mold steel is adopted •Hardnee steel tool with shot life up to 500K~ 1M shots

Parameter

With Gennki Group, rapid prototype making, injection molding service, aluminum die casting service, stamping, assembly customers can always expect:
• Product design and engineering analysis and assistance
• High production speeds and volumes
• High-quality parts and finishes
• Minimal post-processing
• Low scrap rates
• Efficient communication

• Short lead time

• Intellectual property protection

Frequently Asked Question:

Q1. What is required of RFQ?

1) 3D formats with .stp.(preferred) igs,.prt.

2) 2D drawing for tolerance/material/surface finish/test requirement/regulations

3) Quantity (by order, month and Year)

Q2. How do you ensure product quality?

Gennki applies assessment, planning, monitors every single process. Some bullet points:

1) Apply APQP Product development analysis

2) Lay emphasis on prevention and planning

3) Quality Criteria (ISO and TS 16949)
Q3. How do you ensure on-time delivery?

1) Detailed planning, details per hour/person/machine number/stakeholder…

2) Main material is managed efficiently

3) Daily progress meetings, a recovery plan will be reviewed by the management team once any key chain is a delayed.

4) If a delay happens on delivery in the course, extras hours will help to turn it on schedule

Q4. How can you if we don’t have the CAD data?

Gennki is able to generate the CAD for your review and approval in terms of your 2D sketch, or certain samples.

Q5. Can we test the plastic injection mold?

You are always welcome to company with us to try the molds in place in person. The testing video can be supplied for your checking in your absence.

Q6. How long does an injection mold last?

Generally, a plastic injection mold could complete anywhere between 100,00 to 1 million (or sometimes somewhat more than a million) cycles in its lifetime, so it's subject to customer’s expectancy.

Q7. How about your guarantee or aftersales?

The worn-easily spare parts will be freely provided during the warranty period. Gennki’s strategic associated American mold shop will assist you to handle the modification change if needed after the delivery.

Q8. How Can I visit your company from abroad?

Easy to find, you may take an international flight either land at PVG Airport or Hongqiao Airport from your workplace. The nearby high-speed train station to Hongqiao Airport will facilitate your trip to elsewhere in China.
