2738 2344 Steel Thermoset Injection Mould 2D Drawing Thermoset Compression Molding
| Place of Origin | China |
|---|---|
| Brand Name | Gennki |
| Certification | ISO9001 / TS 16949 |
| Minimum Order Quantity | 1 mold |
| Price | discuss base on certain RFQ |
| Packaging Details | plastic film wrapped or vacuumed, and sustained in the wooden crate |
| Delivery Time | 45 days~60 days |
| Payment Terms | T/T |
| Supply Ability | 60 sets/Monthly |
Product Details
| Application | Industrial Component | Shaping Form | Injection Mold |
|---|---|---|---|
| Mold Steel | 2738 Or 2344 | Injection Material | BMC |
| Cavity No. | Base On The Production Requirement | Design Standard | DME Or Hasco |
| Design Software | Solidworks, Proe, Catia, UG | Design Format | IGES, Prt. Step |
| Incoterm | FOB | ||
| High Light | 2738 steel Thermoset Injection Mould,2344 Thermoset Injection Mould,2D Drawing thermoset compression molding |
||
Product Description

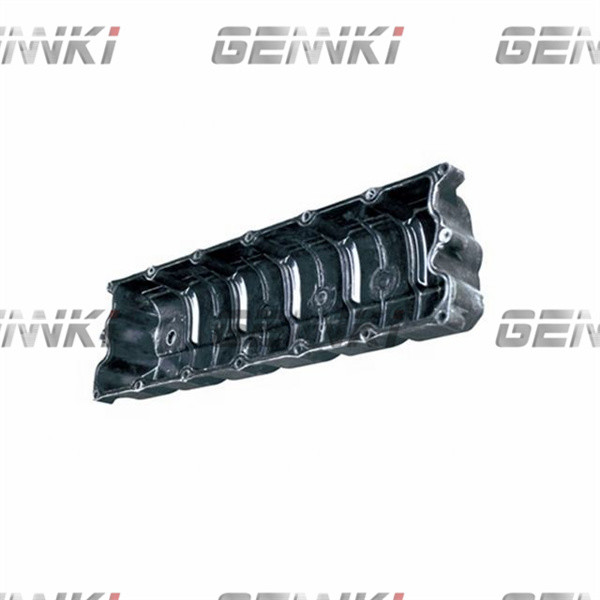

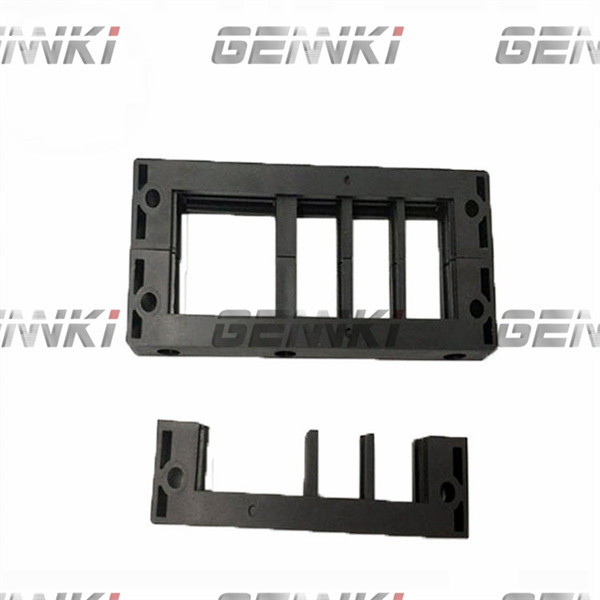

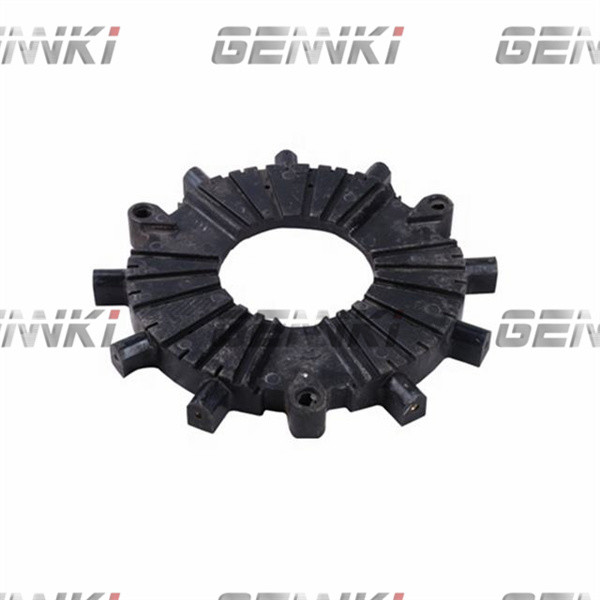

Construction components made by Plastic thermoset Molds
Gennki can provide customers turnkey-solution service, from concept--------->specfication--------->DFMEA--------->Design--------->Prototype--------->Design verify--------->Preproduction--------->Mass production.
With Gennki Group, the manufacturing service of rapid prototype making, injection molding service, aluminum die casting service, stamping, assembly customers can always expect:
• Product design and engineering analysis and assistance
• High production speeds and volumes
• High-quality parts and finishes
• Minimal post-processing
• Low scrap rates
• Efficient communication
• Short lead time
Parameter
|
Product Description
|
Make injection molds and produce plastic injection molding parts |
| Plastic Materials: | PS, ABS, PP, PVC, PMMA, PBT, PC, POM, PA66, PA6, PBT+GF, PC/ABS, PEEK, HDPE, TPU, PET, PPO,...etc. |
| Other materials: | Rubber, Silicone rubber, Aluminum, Zinc, Copper...Metal...etc. |
| Quality: | RoHS and SGS standard |
| Feature: | Nonmarking and Non-flash |
| Size: | According to your 2D or 3D Drawing |
| Color, Quantity, Unit price, Tooling cost, Tooling size: | To be discussed |
| Package: | Standard exported Wooden box packed, Fumigation process(upon required) |
| Mold Building Lead Time: | T1, 4-5 weeks, Part measurement report (upon required). |
| Export Country: | Europe, America, Australia, UK, Canada, France, Germany, Italy, Japan...etc.: |
| To be discussed | In-Mold Decoration, Injection Mould, Plastic Mold, Overmould, 2K Mould, Die-Casting Mould, Thermoset Mold, |
| Interchangeable Mold, Collapsible Core Mold, Die Sets, Compression Mold, Cold Runner System LSR Mold,...etc. | |
| Mould Base: | Hasco Standard, European Standard, World Standard |
| Mould Base Material: | LKM, FUTA, HASCO, DME,...etc. Or as per the Customer's requirement. |
| Surface Finish: | Texture(MT standard), High gloss polishing |
| Cavity/Core Steel: | P20, 2311, H13, 2344, Starvax 420, 236, AdC3, S136, 2312, 2379, 2316, 2083, Nak80, 2767 ...etc. |
| Hot/ Cold Runner | HUSKY, INCOE, YDDO, HASCO, DME, MoldMaster, Masterflow, Mastip |
| Mould Life: | 5,000 to 1,000,000 Shots. (According to your working environment.) |
| Design & Program Softwares: | CAD, CAM, CAE, Pro-E, UG, Soildworks, Moldflow, CATIA....etc. |
| Facilities: |
High-speed CNC, Standard CNC, EDM, Wire Cutting, WEDM, Grinder, Plastic Injection Molding Machine for trial out mold from 50-3000T
|
Frequently Asked Question:
Q1. What is required of RFQ?
1) 3D formats with .stp.(preferred) igs,.prt.
2) 2D drawing for tolerance/material/surface finish/test requirement/regulations
3) Quantity (by order, month and Year)
Q2. How do you ensure product quality?
Gennki applies assessment, planning, monitors every single process. Some bullet points:
1) Apply APQP Product development analysis
2) Lay emphasis on prevention and planning
3) Quality Criteria (ISO and TS 16949)
Q3. How do you ensure on-time delivery?
1) Detailed planning, details per hour/person/machine number/stakeholder…
2) Main material is managed efficiently
3) Daily progress meetings, a recovery plan will be reviewed by the management team once any key chain is a delayed.
4) If a delay happens on delivery in the course, extras hours will help to turn it on schedule
Q4. How can you if we don’t have the CAD data?
Gennki is able to generate the CAD for your review and approval in terms of your 2D sketch, or certain samples.
Q5. Can we test the plastic injection mold?
You are always welcome to a company with us to try the molds in place in person. The testing video can be supplied for your checking in your absence.
Q6. How long does an injection mold last?
Generally, a plastic injection mold could complete anywhere between 100,00 to 1 million (or sometimes somewhat more than a million) cycles in its lifetime, so it's subject to customer’s expectancy.
Q7. How about your guarantee or aftersales?
The worn-easily spare parts will be freely provided during the warranty period. Gennki’s strategic associated American mold shop will assist you to handle the modification change if needed after the delivery.
Q8. How Can I visit your company from abroad?
Easy to find, you may take an international flight either land at PVG Airport or Hongqiao Airport from your workplace. The nearby high-speed train station to Hongqiao Airport will facilitate your trip to elsewhere in China.
